Our latest Level Set-Up System. Build as You Grow.
Measures Chassis Wheel Weights & Balance,
Shock Centerlines OR Frame Heights, Shock Travel
Center of Gravity Position +
8 Channel System. 10” Wireless Tablet Display. Lightweight 10” Scale Stands.
Pulls Chassis Down to Measure On-Track Balance & Wheel Positions.
Modular System. Start complete or build as you grow.
• Stage 1 Kit: Everything you need to pull down your race car except scales & stands. Cylinders, Chassis Mounts, Floor Mounts, Slip Plates, Precision Joystick Control.
• Stage 2 Pull Down System: Everything in Stage 1 Plus 10” Lightweight Pull Down Stands with Roll Offs. Just add your scales and you’re ready to pull down.
• Stage 3 System with Scales: Stage 2 System with DRP High Load Pull Down Scales. These are purpose-built scales for Dynamic Scaling.
Optional: Shock Sensors or Frame Height Sensors
DSS-2 Systems
DRP High Load Pull Down Scales
-
Displays Wheel Weights, Shock Center to Center, Shock Travel & Frame Heights!
-
Optional Bump Stop, Sway Bar, Droop Limiter or Trailing Arm Load Cells.
-

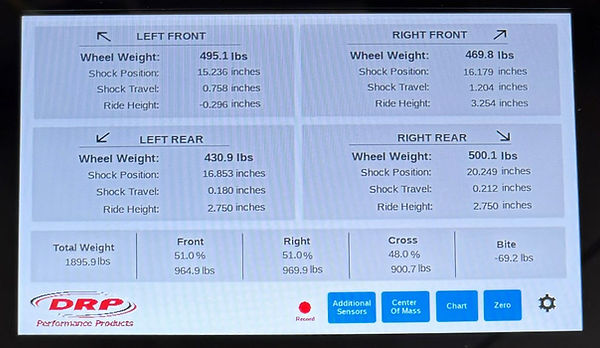

All of Your Information on One, Easy to Read Screen.
-
Wireless 10” Tablet Touchscreen Display!
-

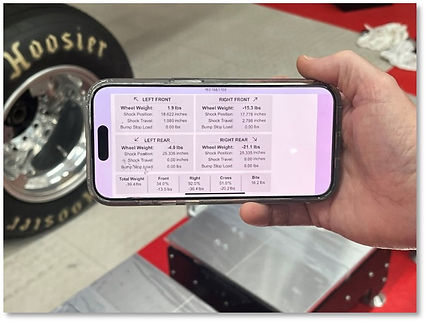

Also Use your Apple or Android Phone, I-pad or Lap Top to Display or Mirror to TV!
-
Easily Screen Shot Your Results for Your Notebook.
-
Center of Gravity Screen
-
Tracks the Center of Gravity Position within the 4 Contact Patches.
Advanced Chassis Set-Up. Short Track Price.
DSS-2 Pull Down Kit – Stage 1
-
Pull Down Controls & Cylinders – Use with Your Stands & Scales.
-
3X Precision Pull Down Cylinders
-
Fast, Hang-Over Style, Fully Adjustable Chassis Mounts
-
Adjustable Billet Floor Mounts for Cylinders
-
Dirt Kit includes 2 Chassis Cylinders + Acceleration Kit
PD19020 DSS-2 Pull Down Kit - Asphalt $5995.00
PD19020D DSS-2 Pull Down Kit - Dirt $6495.00
DSS-2 Pull Down System – No Scales – Stage 2
-
Same Specs as Stage 1, But with:
-
10” Lightweight Pull Down Scale Stands with Roll Offs
PD19030 DSS-2 Pull Down System Complete no Scales- Asphalt (No Scales) $8475.00
PD19030D DSS-2 Pull Down System Complete no Scales - Dirt (No Scales) $8995.00
DSS-2 Pull Down System with Scales – Stage 3
-
Same Specs as Stage 2, But with:
-
DRP High Load Pull Down Scales
PD1904 DSS-2 Pull Down System Complete with Scales - Asphalt $14,475.00
PD19040D DSS-2 Pull Down System Complete with Scales- Dirt $14,975.00
Options:
Scales Only – DSS-2 High Load Pull Down Scales Only; 10” Tablet Display $6585.00
Shock Sensor Kit (4 Linear Shock Sensors) $1130.00*
Frame Height Sensor Kit (String Sensors, Magnetic to Frame) $1240.00*
Portable Beam Kit (Set Up System Anywhere. No Floor Mounts Required.) $1150.00
Ground Plane Laser Kit $550.00
Real Square RS400PRO Laser Wheel Alignment System $4150.00
Stand Extensions 6” (18” Overall) $360.00 10” (22” Overall) $499.
*4 Sensor Channels available for Shock Sensors or Frame Height Sensors
